180A 90KW Bypass Ac Motor Soft Starter 50Hz Output

Product Categories
CHINA EM TECHNOLOGY LIMITED
Contact Now

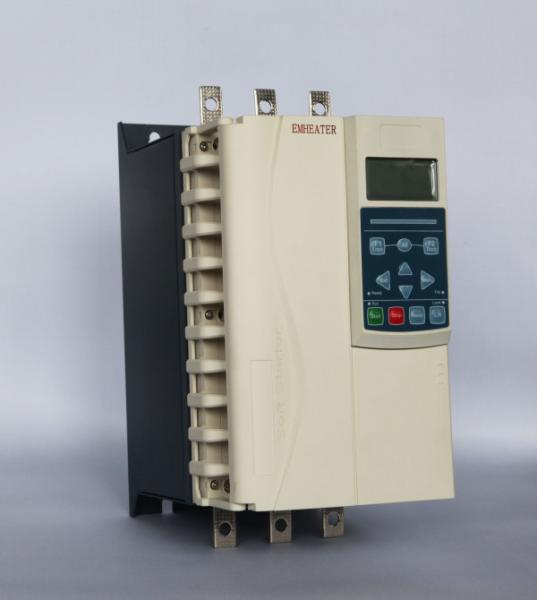

180A 90KW Bypass Ac Motor Soft Starter 50Hz Output

  • 1
  • 2

Brand Name : EMHEATER

Model Number : EM-GB3-090

Certification : CE, Rohs,ISO9001

Place of Origin : CHINA

MOQ : 1

Price : Please contact for quotation

Payment Terms : T/T, Western Union

Supply Ability : 1000pcs per week

Delivery Time : 1~7 work days

Packaging Details : standard packing

Products Name : Built in Bypass Soft Starter

Rated Powerge : 90KW

Input Voltage : 3 PHASE 400V

Output Voltage : 3 PHASE 400V

Output Current : 180A

Protection : IP20

Contact Now

90KW Built in Bypass Soft Starter 50Hz output frequency for ac motor

EM motor soft starter is suitable for squirrel cage asynchronous motor control with various loads to ensure reliable start of motor. It has a complete system protection function, extend the service life of the system, reduces the cost of the system, improves the reliability of the system and compatible with various functions of all devices. It is a new ideal alternative for traditional star triangle starter and self-coupling decompression starter.

Product features

  • Excellent control performance

    With voltage and current limiting and etc six starting modes to adapt to different types of load; and soft stop mode to reduce power shock.

    Perfect protection function

    All series with over current, over voltage, overlord and etc protection functions ,it can effectively guarantee the normal operation of the motor.

    More product certification

    Products with ISO9001, 3C, CE and other quality system certification to meet customer equipment export requirements.

  • Advanced soft starter type: "voltage control type" and "current limiting type".
  • Capacity to motor effectively, so it could save the cost.
  • Intelligent, digital and single chip control.
  • Man-machine conversation function.
  • Delay starting function. Operation current displayed.
  • Failure self-diagnosis.
  • Natural wind cooling. Space saving.
Selectable soft starting profiles Customisable protection

Adaptive Control

Constant Current

Current Ramp

Motor overload

Excess Start Time

Undercurrent

Instantaneous overcurrent

Current imbalance

Mains frequency

Input Trip

Motor thermistor

Power circuit

Phase sequence
Selectable soft stopping profiles Models for all connection requirements

Coast To Stop

Timed voltage ramp soft stop

Adaptive Control

Brake

23 A~1000 A (nominal)

380~415 VAC

Internally bypassed

In-line or inside delta connection
Extensive input and output options Optional features for advanced applications

Remote control inputs (3 fixed, 2 programmable

Relay outputs (1 fixed, 3 programmable)

Analog output

Built-in PT100 RTD input

Optional expansion cards

Input/output expansion

RTD and Ground fault protection

Communication modules: Modbus, Modbus RTU
Easy-to-read display with comprehensive feedback

Removable keypad

Multi-language feedback

Date and time stamped event logging

Operational counters (number of starts, hours-run, kWh)

Performance monitoring (current, voltage, power factor, kWh)

User-programmable monitoring screen

Soft starter model

Model

Rated Power

Rated Current

Dimensions(mm)

N.W.

(KW)

(A)

A

B

C

D

E

(Kg)
EM-GB3-011 11 22 152 92 312 269 215 5.2
EM-GB3-015 15 30
EM-GB3-018 18.5 37
EM-GB3-022 22 44
EM-GB3-030 30 60
EM-GB3-037 37 75 152 92 312 269 215 5.2
EM-GB3-045 45 90
EM-GB3-055 55 110
EM-GB3-075 75 150 275 160 410 390 265 18.3
EM-GB3-090 90 180
EM-GB3-115 115 230
EM-GB3-132 132 264 443

320

160*2

 600 540 290 35.8
EM-GB3-160 160 320
EM-GB3-200 200 400
EM-GB3-250 250 500
EM-GB3-280 280 560
EM-GB3-315 315 630
EM-GB3-355 355 710

180A 90KW Bypass Ac Motor Soft Starter 50Hz Output180A 90KW Bypass Ac Motor Soft Starter 50Hz Output180A 90KW Bypass Ac Motor Soft Starter 50Hz Output180A 90KW Bypass Ac Motor Soft Starter 50Hz Output

FAQ

What's the delivery term?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDU, etc.

What's the payment term?

Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash;

What's about your delivery time?

All type we have stock,after we receive payment,we will send you within two days.

What is your production capacity?

Each product has different production capacity, we can talk details by email.

What kind of product quality your factory offer?

We offer most competitive prices with best quality
